Dimensions: 96 x 96 x 25 mm (body only)
Weight: 520 gr (Body: 205gr | Delrin Handle: 185gr | GC Lens Mount: 115 gr)
Materials: Aluminium AL6082 (Body | GC Lens Mount)
Backs: Compatible with Analog and Digital Hasselblad®1 V Backs (CFV50c1 II and CFV100c1)
Hole Dimensions: 54 x 41 mm
Construction: Machined CNC, custom coating on surfaces, machined graduate scales
Lenses: Compatible with Rodenstock ® 2 HR Digaron3 W-SW line lenses (32|40|50|90mm). Compatible with different lenses ( COPAL 0 | COPAL 1 shutter ) producing special flanges ( based on the focal lenght to infinity). Max diameter 80mm
Shutter: Electronic Shutter from Digital back | Leaf Shutter from COPAL 0 or 1 on lenses
Shutter Impulse: Electric impulse with the GH-E (compatible only with the digital backs) Shutter cable release with the GH-A

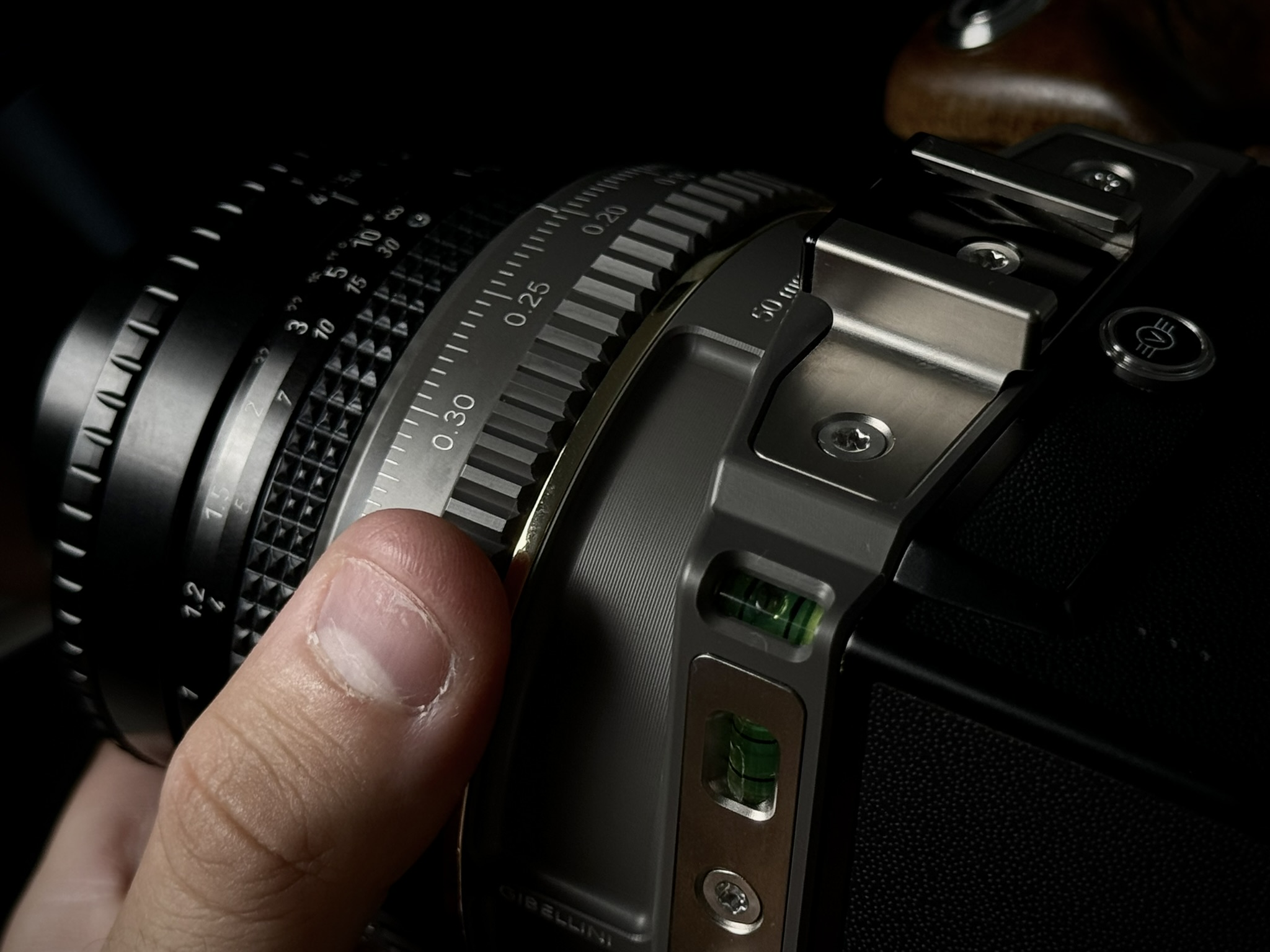

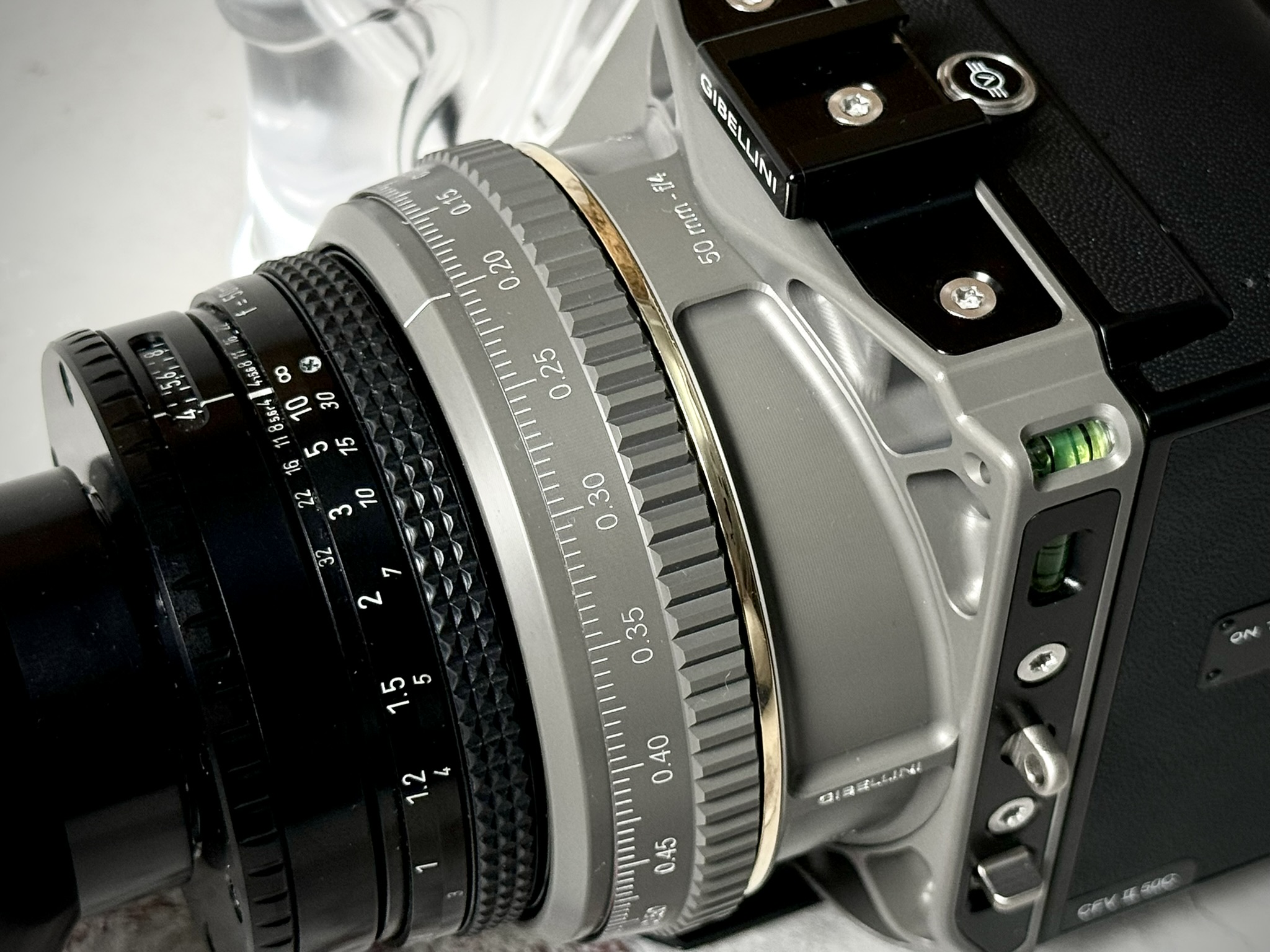

Focusing: Manual focus with dedicate helical mount for each lens
GFC Focusing Calibration: Micrometrical thread to make fine correction of infinity focus on each lens coupled to the sensor.
Tripod Mount: Fast Mount compatible with Arca® 4 and 1/8” UNC screw mount
Available on backorder
